BPI-M7/M1S/M5 PRO/CM5 Pro/W3 Display 10 HD

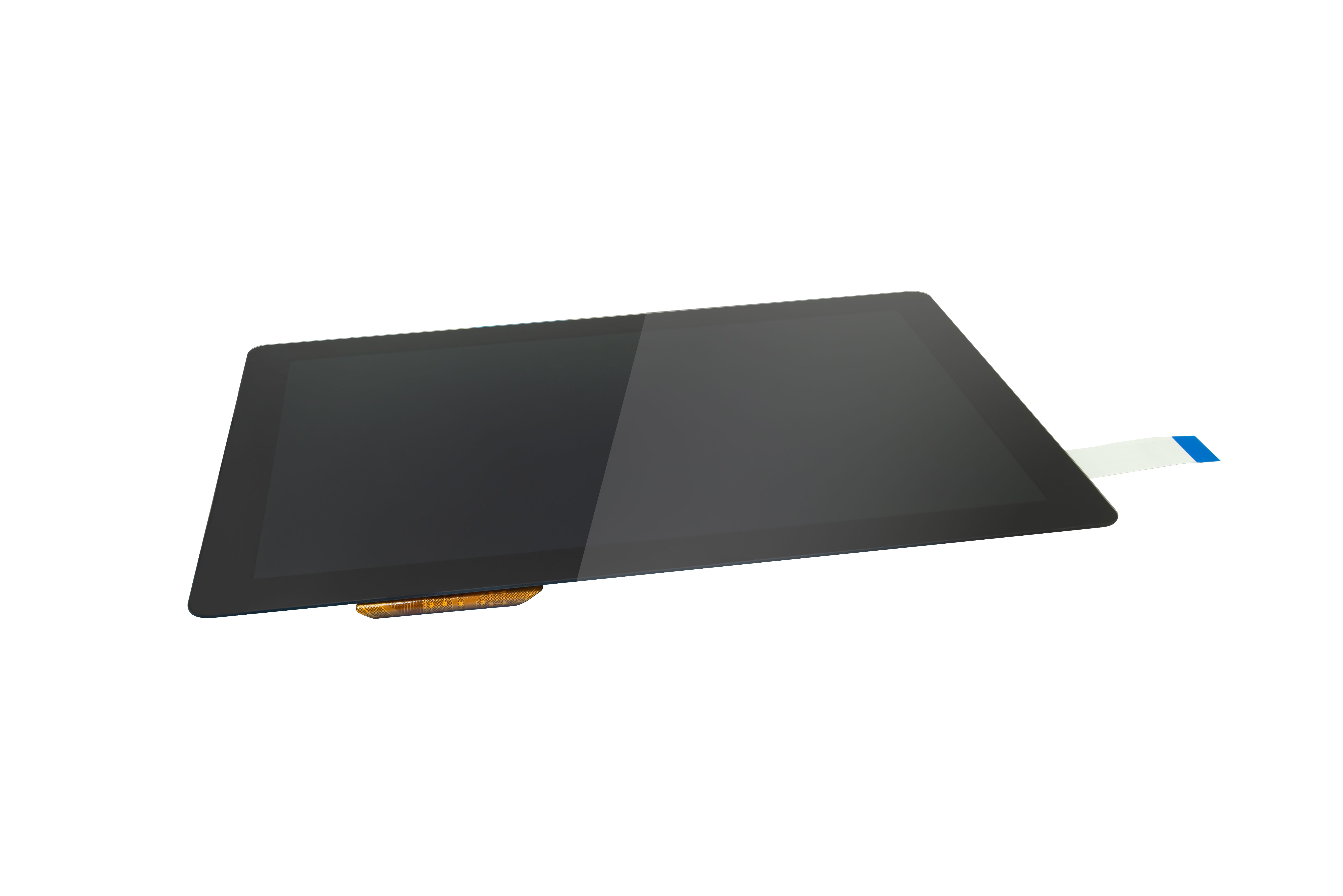

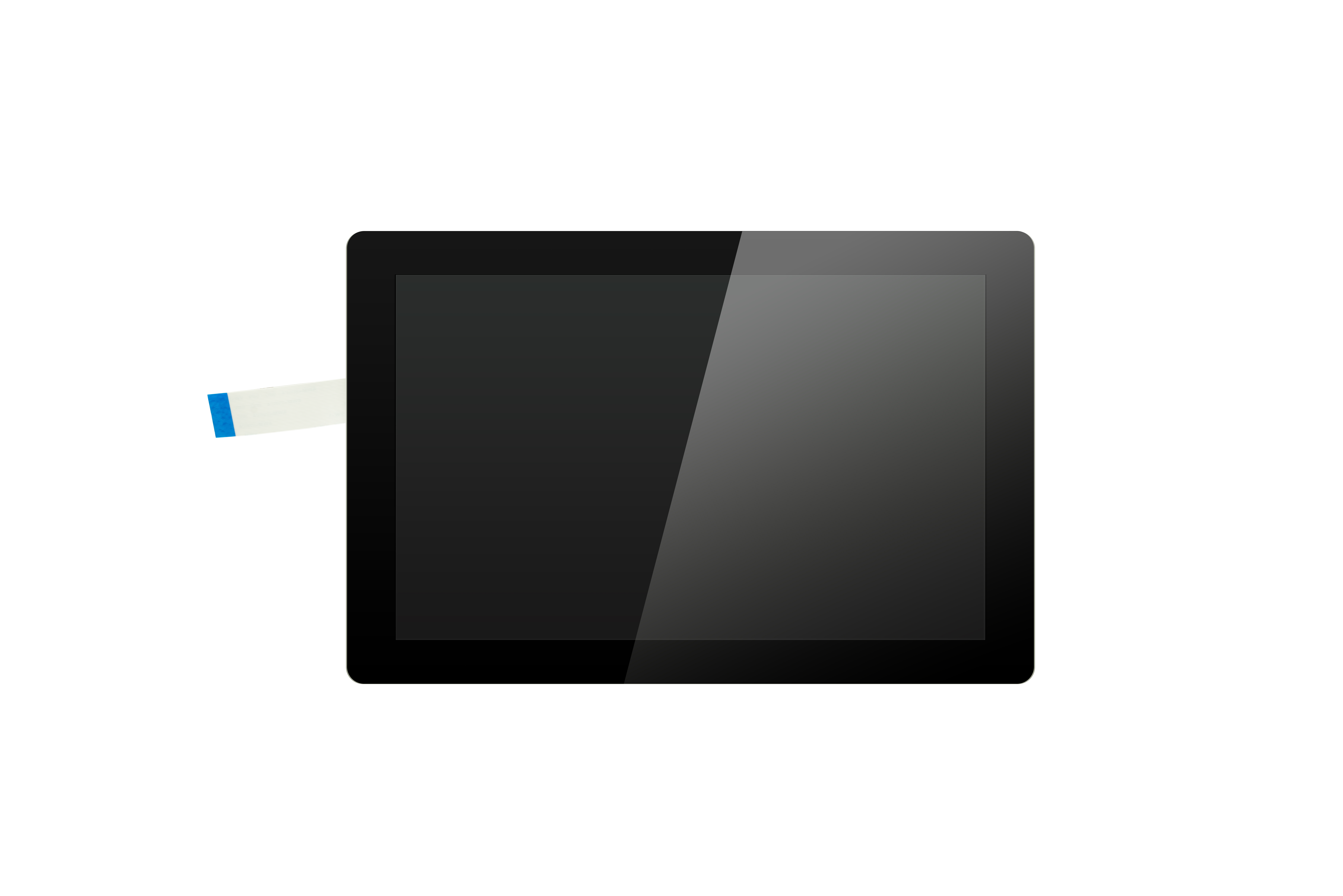

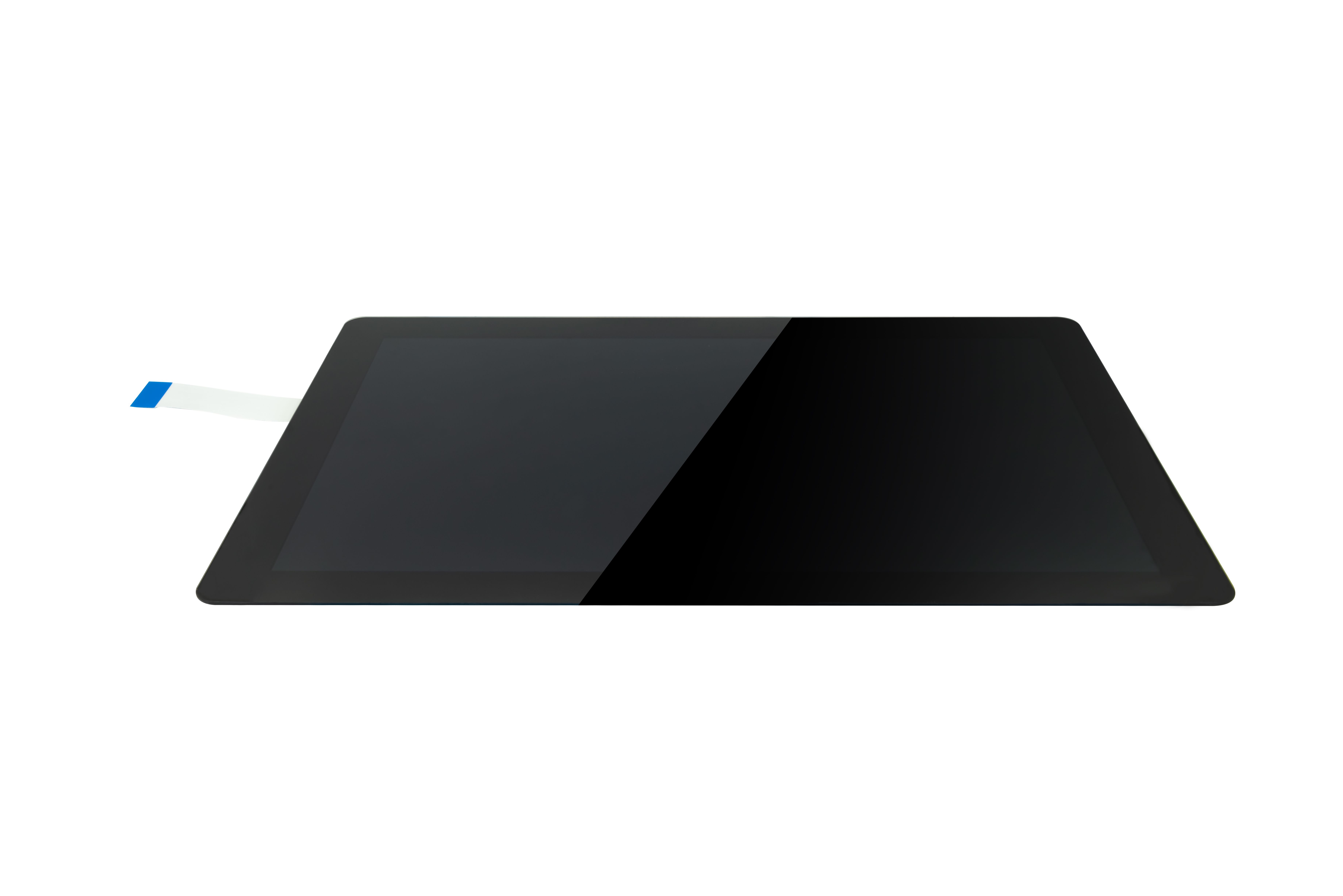

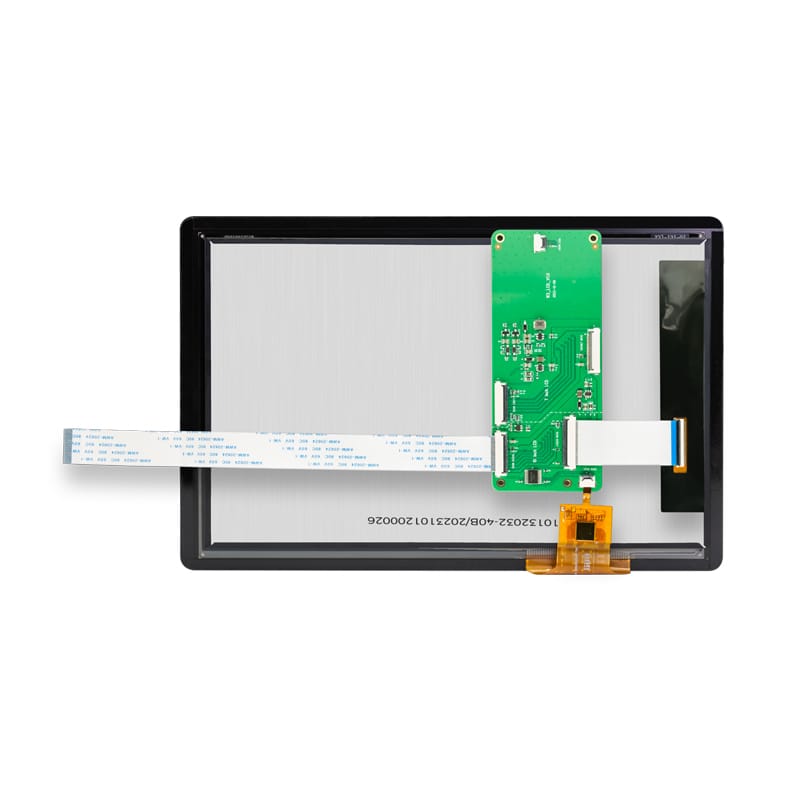

The display model BPI Display 10 HD1 is a ALL O‘ clock TFT LCD (Thin Film Transistor Liquid Crystal Display) module. This model is Composed of a TFT LCD panel, a driving circuit and a back light, and also has a 10.1 inch diagonally measured active display area with FHD(1200 horizontal by 1920 vertical pixel) resolution in a stripe arrangement. Display 16.7M colors by 8 bit R.G.B signal input.

Suitable for interactive projects such as tablets, entertainment systems, and information dashboards.

Compatibility

• M1S/M5 Pro/M7
• CM5 Pro
• LM7 & W3

General information

• Outline Dimension: 143×228.70×2.25 (TYP.) mm
• Display area: 135.36(H)×216.58(V) mm
• Number of Pixel: 1200RGB(H)×1920(V) pixels
• Pixel pitch: 0.1128 (H)×0.1128(V) mm
• Pixel arrangement: RGB Vertical stripe
• Display mode: IPS
• Surface treatment: AG
• Back-light: White LED
• System interface: 4 lane MIPI
• NTSC: 72（type） %
• Viewing Direction: ALL VIEW
• Power Consumption: TBD mW
